愛普生晶振公司1942年成立以來一直活躍在晶振領域，注重自主品牌的建設,掌握自主研制,定制,實現全套的晶振工藝技術流程,擁有石英晶體振蕩器技術的自主技術專利和產品線,能夠?yàn)榭蛻?hù)提供全國產化晶振解決方案.

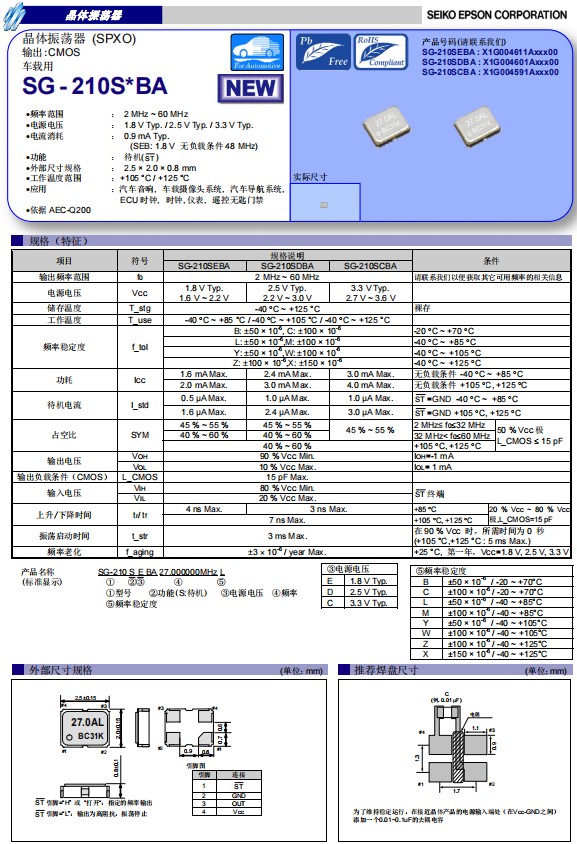

日本進口愛普生晶振SG-210SEBA，四腳貼片晶振，小體積尺寸2.5x2.0mm晶體振蕩器（SPXO)，支持CMOS電平輸出，有源晶振，石英晶體振蕩器，頻率2MHz至60MHz，低電源電壓1.8V,2.5V,3.3V，具有超小型，輕薄型，耐熱及耐環境特性，應用于汽車音響，車載攝像頭系統，汽車導航系統，ECU時鐘，儀表，遙控器等。
愛普生CMOS輸出晶振SG-210SEBA特別適用于車載電子應用,X1G004611A01200,石英晶體振蕩器

產品編碼	型號	石英晶振	尺寸	輸出波	電源電壓
X1G004611A00100	SG-210SEBA	24.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A00300	SG-210SEBA	27.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A00400	SG-210SEBA	20.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A00500	SG-210SEBA	27.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01200	SG-210SEBA	24.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01300	SG-210SEBA	33.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01400	SG-210SEBA	16.666600 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01600	SG-210SEBA	14.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01700	SG-210SEBA	37.125000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A01900	SG-210SEBA	13.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V

X1G004611A02000	SG-210SEBA	10.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02100	SG-210SEBA	48.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02200	SG-210SEBA	16.660000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02400	SG-210SEBA	14.745600 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02500	SG-210SEBA	16.640000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02600	SG-210SEBA	24.576000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02700	SG-210SEBA	12.288000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A02800	SG-210SEBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A03000	SG-210SEBA	48.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A03100	SG-210SEBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A03300	SG-210SEBA	24.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V
X1G004611A03400	SG-210SEBA	20.000000 MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200 V

愛普生CMOS輸出晶振SG-210SEBA特別適用于車載電子應用,X1G004611A01200,石英晶體振蕩器
小型SMD有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也試產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V,5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
